Scepter III Data Collector

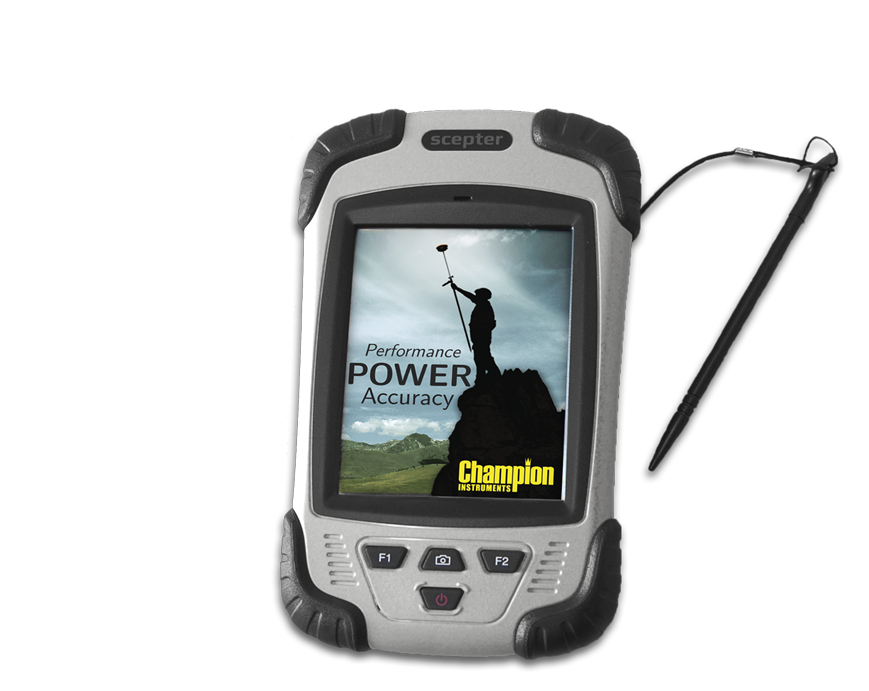

SCEPTER III DATA COLLECTOR

Is it a challenge to keep your GIS database up to date? Would you like to do more with just one system? The Scepter III's data can be mapped in less time with less effort. The light-weight rugged Scepter III is the simple and total solution to your biggest GIS mobile application challenges.

COMPATIBLE INTEGRATION

The integrated cellular modem offers wireless connections to access the internet, exchange GIS data and connect to devices such as Bluetooth-enabled laser rangefinders, portable printers and barcode scanners. Other capabilities include WAAS satellite corrections and u-blox raw data format used by commercial software applications for post processing.

SCEPTER III FEATURES

 Mobile GIS technology
1.5 m accuracy at a fraction of the cost of competitor's equipment
GSM internal modem
Ruggedized for extreme conditions
Integrated 5 MP camera
Windows Mobile standards for full 3rd party software compatibility
Windows Mobile phone
Power to handle large data sets in the field
Static file storage for post processing*
SBAS corrections*
Real Time Network Corrections*
Full VGA 3.7" TFT touch screen

* Dependent on software used


YOUR PREFERENCES WITH SUPREME POWER

With a powerful 806MHz processor, 1GB RAM and up to 8G MicroSD, the handheld Scepter III GIS Data Collector is a high performance device designed to give you all the power you need to work with maps and large data sets in the field. Powered by Windows Mobile 6.5, the Scepter III gives you the freedom to choose a software solution that meets the needs of your field work.

SCEPTER III GIS SPECIFICATIONS

System









Physical



Environment



Input/Output






GPS Performance








Receiver Performance Data

Microsoft Windows Mobile 6.5
806 MHz CPU, 256MB RAM
Integrated 5 Megapixel camera with autofocus
Speaker and microphone
Integrated 65 M Cellular modem
1 GB storage up to 8GB MicroSD
MicroSD memory card slot
3.7 in VGA LCD, sunlight-readable, transflective touch screen
3000 mAH Li-Ion batteries (Allows 10+ hours of operation)

Size: 3.7 in (W) x 6.3 in (H) x 1.2 in (D)
Weight: 9.6 oz
Active viewing area: 7.2 sq.in. (480 x 640 portrait)

Operating Temperature: -20°C to +60°C (-4°F to 140°F)
Storage Temperature: -30°C to +70°C (-22°F to 158°F)
Drop: 1.0 meter protection
Waterproof: IP65

Expansion: microSD card slot (microSDHC compatible)
Display: 3.7" VGA TFT Color Transflective
MiniUSB client v2.0 compliant
Wireless connectivity: Bluetooth 2.0
WiFi connection


Professional GPS and GPS antenna
External GPS antenna support
RTCM2.3/SBAS IN; RAW Data output
L1 DGPS: 0.8-2 meter accuracy*
TTFF: Cold start > 50 seconds; Hot start > 10 seconds
NMEA-0183 protocol output



Receiver type
50-channel u-blox 6 engine
GPS L1 C/A code
SBAS: WAAS, EGNOS, MSAS
Navigation update rate: up to 5 Hz
Accuracy 1
Position 2.5m CEP
SBAS 2.0m CEP
Acquisition 1
Cold starts: 27s
Aided starts2: 4s
Hot starts: 1s
Sensitivity 3
Tracking: -159 dBm
Cold starts: -147 dBm
Hot starts: -156dBm

1 All SV @ 130 dBm.

2 Dependent on aiding data connection speed and latency.

3 Demonstrated with a good active antenna.

Specifications are subject to change without notice.


Champion, Champion Scepter III are trademarks of Champion Instruments, LLC.
