GNSS Specifications | |
Satellite systems tracked simultaneously | |
GPS | L1 C/A, L2C, L2E |
GLONASS | L1, L2 C/A |
SBAS | L1 C/A |
Galileo | E12 |
QZSS | L1 C/A, L1 SAIF, L2C |
Performance Specifications | |
Static and Rapid Static | |
Horizontal | 2.5 mm + 0.5 ppm RMS |
Vertical | 5 mm + 0.5 ppm RMS |
Code Differential GNSS Positioning | |
Horizontal | 25 cm + 1 ppm RMS |
Vertical | 50 cm + 1 ppm RMS |
SBAS | 0.50 m horizontal, 0.85 m vertical |
Post Process Kinematic | |
Horizontal | 1 cm + 1 ppm RMS |
Vertical | 2.5 cm + 1 ppm RMS |
Initialization Reliability | Typically > 99.9% |
RTK Surveying | |
Horizontal | 8 mm + 1 ppm RMS |
Vertical | 15 mm + 1 ppm RMS |
Initialization Time | Typically < 8 seconds |
Initialization Reliability | Typically > 99.9% |
Physical Specifications | |
Size | 211 mm x 100 mm x 58 mm |
Weight | 1.4 lbs (635 g) with battery |
Display | 3.7 in colorful TFT high resolution, readable under sunlight touchscreen, LED backlight |
Environment | |
Operating Temperature | -30 °C to +70 °C (-22 °F to 158 °F) |
Storage Temperature | -40 °C to +80 °C (-40 °F to + 176 °F) |
Humidity | 100% condensation |
Waterproof & Dustproof | IP67 |
Drop | 2 m protection |
Electrical | |
Battery | Lithium battery, 6200 mAh/3.7 V |
Battery Life | 12 hours continuous work |
Charging Time | 7 h |
Communication and Data Storage | |
Internal Memory | 64 MB |
Camera | 2 megapixel |
Internal triple frequency antenna | |
Data Formats (from 1 Hz positioning output up to 50 Hz) CMR SCMRX, CMR, CMR input and output | |
RTCM RTCM 2.1, RTCM 2.2, RTCM 2.3, RTCM 3.0, RTCM 3.1 input and output | |
Navigation Outputs ASCII NMEA-0183 GSV, AVR, RMC, HDT, VGK, VHD, ROT, GGK, GGA, GSA, ZDA, VTG, GST, PJT, PJK, BPQ, GLL, GRS, GBS | |
I/O Interfaces | 1x Bluetooth Class 2, 1x standard USB 2.0 port, 1x RS232 serial port, 1x DC power input (8-pin & 5 pin) |
GSM Modem | Included; Network RTK (via CORS) range 20 - 50 km |

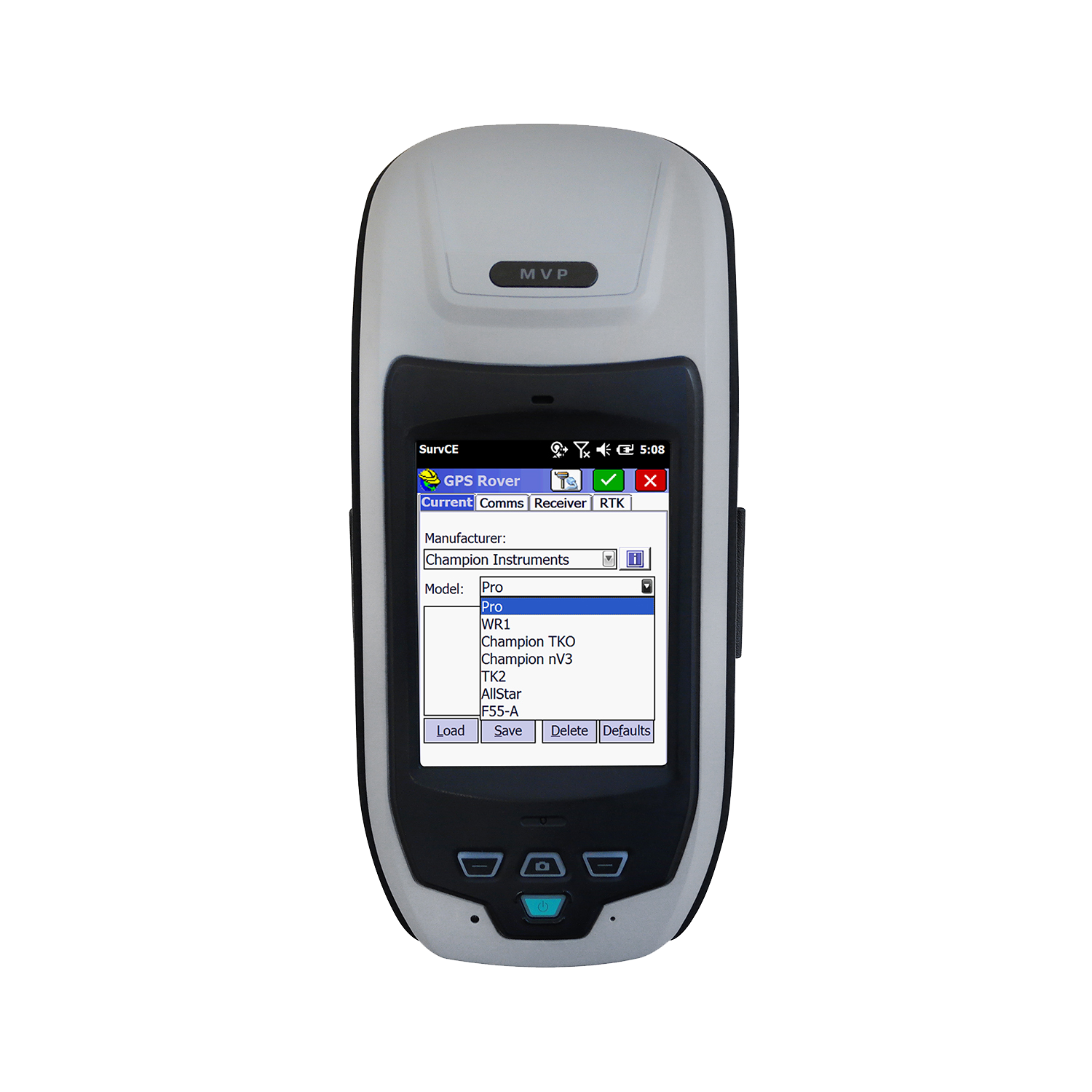

Champion, Champion MVP are trademarks of Champion Instruments, LLC.
