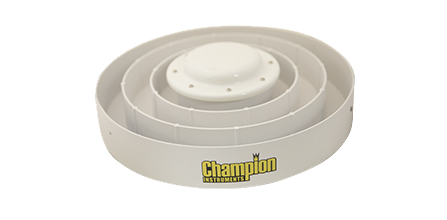

CHOKE RING ANTENNA SPECIFICATIONS
Model #PS9017
| Specification |
| Frequency |
1166-1280 MHz, 1559-1610 MHz for: |
| GPS |
L1 C/A, L2E, L2C, L5 |
| GLONASS |
L1 C/A, L1 P, L2 C/A, L2 P |
| BeiDou |
B1, B2, B3 |
| SBAS |
L1 C/A and QZSS L1 |
| Galileo |
E1, E5A, E5B |
| Polarization |
RHCP |
| Axial Ratio |
1 dB Typ. 3 dB max |
| LNA |
| Gain |
40 dB |
| Noise Figure |
< 2.0 dB |
| Port VSWR |
< 2.0 : 1 |
| Voltage |
3.0 - 6.0 V DC |
| Current Draw |
< 65 mA |
| Spike Voltage Withstanding |
+/-20 DC |
| ESD |
8 KV |
| Environment |
| Operating Temperature |
-40 °C - +85 °C |
| Storage Temperature |
-40 °C - +85 °C |
| Humidity |
100% |
| IP67 for internal antenna element |
