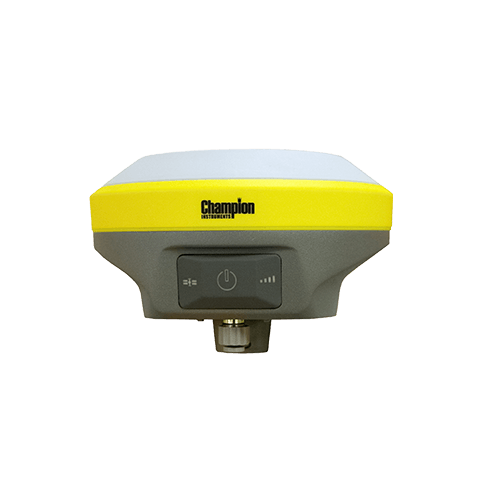

Small, compact mainframe
Full-band antenna
BD970 mainboard
IP67
NFC rapid connection
Electronic bubble
Tilt sensor
Wi-Fi
MiniUSB
Customized Voice
STANDARD ACCESSORIES
Hard Carrying Case
Batteries
Brackets
UHF radio
3G GSM
Software manuals on CD
GNSS Specifications | |
220 channels with simultaneously tracked satellite signals* | |
GPS | L1 C/A, L2E, L2C, L5 |
GLONASS | L1 C/A, L1 P, L2 C/A (GLONASS M Only), L2 P |
BeiDou | B1, B2 |
Galileo | L1 BOC, E5A, E5B, E5AltBOC |
SBAS | L1 C/A, L5 |
Advanced multipath mitigation technology | |
Low noise carrier phase measurement with < 1 mm precision in a 1 Hz. bandwidth | |
Performance Specifications | |
Real-Time Kinematics (RTK) | |
Horizontal | 10 mm + 1 ppm RMS |
Vertical | 20 mm + 1 ppm RMS |
Initialization Time | Typically < 10 s |
Initialization Reliability | Typically > 99.9% |
Post Processing Static | |
Horizontal | 2.5 mm + 1 ppm RMS |
Vertical | 5 mm + 1 ppm RMS |
Baseline Length | ≤ 300 km |
Physical Specifications | |
Size | 6.02 in x 3.27 in |
Weight Without Battery | 950 g (2.09 lbs) |
Environment | |
Operating Temperature | -40 °C to +65 °C (-40 °F to 149 °F) |
Storage Temperature | -55 °C to +85 °C (-67 °F to 185 °F) |
Humidity | 100% condensation |
Waterproof & Dustproof | IP67 |
Drop | 3 m protection |
Communication | |
Internal Radio | |
Pacific Crest UHF-Link (403~473 MHz) RX & Tx both | |
UHF-Link (390~430 MHz/430~450 MHz/450~470 MHz) Rx only | |
GSM/GPRS/EDGE (class 10) | |
Quad-band: 850/900/1800/1900 MHz band | |
Operation | |
RTK Rover/Base, post-processing | |
RTK Network Rover: VRS, FKP, MAC | |
Point-to-Point Circuit Switched Data (GSM) GPRS mode through Real-Time Data Server Software (internal GPRS or external cell) | |
Internal Memory | |
16GB supports up to 32GB | |
I/O Interface | RS232*2 (LEMO & DB9) Bluetooth WiFi |
Data Formats | RTCM 2.1, RTCM 2.2, RTCM 2.3, RTCM 2.x, RTCM 3.x, RTCM 3.2, CMR, CMR+, SCMRX |
*Reception is dependent upon firmware versions and licensed features
Specifications are subject to change without notice.
Champion, Champion WR1 are trademarks of Champion Instruments, LLC.
