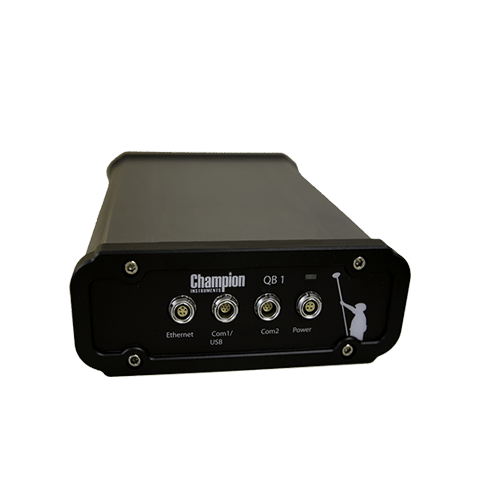

QB1 BASE STATION

The QB1 series was designed with industry-level accuracy to provide quick and easy differential data to all kinds of survey and GIS applications. It is a perfect upgrade for GPS/Glonass/Galileo/Beidou. The QB1 provides a cost-effective answer to demanding applications such as geodetic reference stations, academic research, and more..

QB1 SPECIFICATIONS

GNSS Specifications
Pacific Crest BD970 GPS Engine
220 channels with simultaneously tracked satellite signals*
GPS L1 C/A, L2E,L2C,L5
GLONASS L1 C/A, L1 P, L2 C/A (GLONASS M Only), L2 P
BeiDou B1, B2
Galileo L1 BOC, E5A, E5B, E5AltBOC
SBAS L1 C/A, L5
Advanced multipath mitigation technology
Low noise carrier phase measurement with <1 mm precision in a 1 Hz. bandwidth
Performance Specifications
Real-Time Kinematics (RTK)
Horizontal 10 mm + 1 ppm RMS
Vertical 20 mm + 1 ppm RMS
Initialization Time Typically < 10 s
Initialization Reliability Typically > 99.9%
Post Processing Static
Horizontal 2.5 mm + 1 ppm RMS
Vertical 5 mm + 1 ppm RMS
Baseline Length ≤ 300 km
Physical Specifications
Size 8.27 in x 6.3 in x 2.28 in (210 mm x 160 mm x 58 mm)
Weight 3.3 lbs (1500 g)
Environment
Operating Temperature -30 C to +65 C (-22 F to 149 F)
Storage Temperature -40 C to +75 C (-40 F to 167 F)
Humidity 100% condensation
Drop 1.5 m protection
Electrical Specifications
Power Consumption 1.5 W nominal, dependent on user's settings
External Power Input 12 VDC
User Interface
PC control utility via serial cable allows for basic receiver setup and maintenance
Web User Interface
Allows local and remote configuration, data revival and firmware updates
Communication
1x LAN Port
1 port with RJ45 connector supports links to 10/100 M BaseT Networks
HTTP, HTTPS, TCP/IP, UDP, FTP, NTRIP Server, NTRIP Client
Proxy server support
Routing table support
NTP server, NTP client support
UPnP and zeroconf support
Setup of multiple streaming/monitoring ports
Email alerts and position monitoring
2x COM Ports
Options External TX radio: 1 W - 20 W adjustable
Data Formats RTCM 2.1, RTCM 2.2, RTCM 2.3, RTCM 2.x, RTCM 3.x, RTCM 3.2, CMR, CMR+, SCMRX
Position/Status/IO NMEO0183 v. 2.30, GSOF
Observables RT17, RT27, BINEX < RTCM 3.x; Up to 20 Hz. output standards

Standard Accessories:

Power cable

Serial Cable

10/100M RJ45 Cable


Specifications are subject to change without notice.

Champion, Champion QB1 are trademarks of Champion Instruments, LLC.
