PRO Receiver

PRO RECEIVER

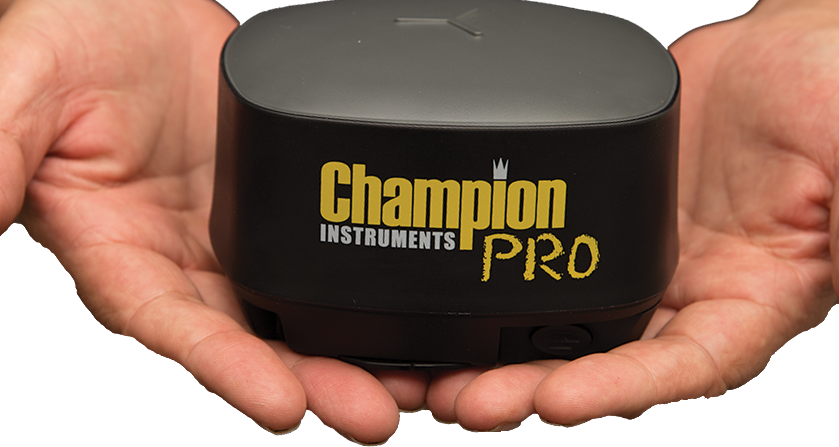

A transceiver that can be used as a Base or Rover; Precision in the palm of your hand.


The Champion PRO is a fully integrated GNSS Receiver with GPRS modem and is available to you at a cost less than most brands. The PRO GNSS Receiver is compatible with Carlson SurvCE and Microsurvey FieldGenius and can store Rinex 2.11 files directly to USB. It is configurable with HTML via. WiFi & has a NTRIP Caster for an Internet Base. The PRO is light, compact, and futureproof.

FEATURES

  • Can be used as a Base, Rover, Static, RTK or RTN
  • Configurable with HTML via. WiFi
  • BD930 GNSS Engine
  • GPRS Modem
  • Lightweight & Small Design
  • Advanced GNSS Antenna
  • Native Rinex 2.11 file format
  • NTRIP Caster for Internet Base
  • COMPATIBLE SOFTWARE

  • Microsurvey FieldGenius
  • Carlson SurvCE

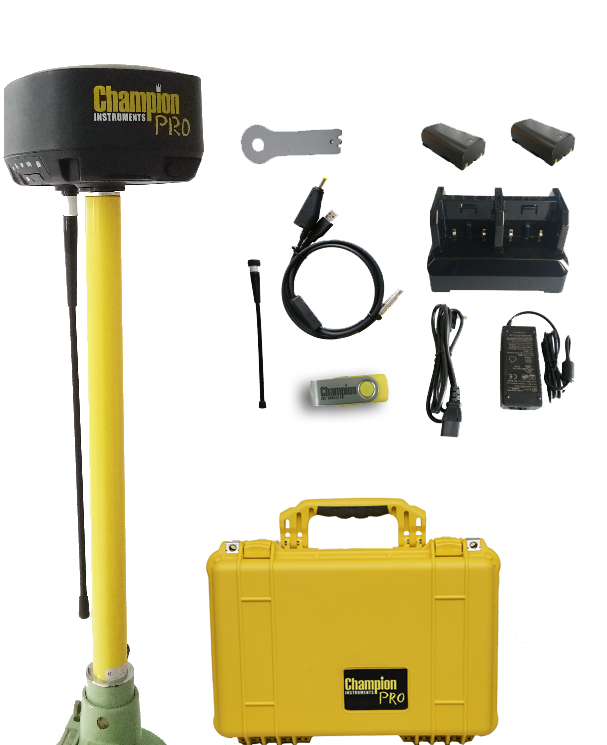

  • STANDARD ACCESSORIES

  • UHF bar antenna (450-470 MHz)
  • Optional OTG cable
  • USB cable with power socket
  • Optional serial cable with power socket
  • Lithium batteries
  • Auxiliary H.I. tool
  • Tribrach adapter
  • Hard case
  • SIGNALS TRACKED

  • GPS L1 C/A, L2E, L2C, L5
  • GLONASS L1 C/A, L1 P, L2, L2 C/A, L2 P, L3
  • SBAS WAAS, EGNOS, MSAS
  • Beidou B1, B2
  • GALILEO E1, E5A, E5B, E5AltBOC
  • PRO SPECIFICATIONS

    GNSS Specifications
    220 channels with simultaneously tracked satellite signals*
    GPS L1 C/A, L2E, L2C, L5
    GLONASS L1 C/A, L1 P, L2, L2 C/A, L2 P, L3
    BeiDou B1, B2
    Galileo E1, E5A, E5B, E5AltBOC
    SBAS WAAS, EGNOS, MSAS
    Performance Specifications
    Real-Time Kinematics (RTK)
    Horizontal 8 mm + 1 ppm RMS
    Vertical 15 mm + 1 ppm RMS
    Initialization Time < 5 s
    Initialization Reliability > 99.9%
    Rapid Static
    Horizontal 5 mm + 1 ppm RMS
    Vertical 10 mm + 1 ppm RMS
    Post Processing Static
    Horizontal 2.5 mm + 0.5 ppm RMS
    Vertical 3.5 mm + 0.5 ppm RMS
    Baseline Length ≤ 300 km
    Physical Specifications
    Size 5.0 in x 5.0 in x 3.3 in (127 mm x 127 mm x 84.6 mm)
    Weight 1.01 kg with battery (35.63 oz)
    Environment
    Operating Temperature -40 °C to +60 °C (-40 °F to 140 °F)
    Storage Temperature -40 °C to +80 °C (-40 °F to 176 °F)
    Humidity 100% condensation
    Waterproof & Dustproof IP67 - protected from temporary immersion to depth of 1 meter
    Drop 2 m protection
    Electrical Specifications
    Li-ion Battery Capacity 3400 mAh/8.4 V
    Battery Life Typical 4 hours in RTK mode
    Int. UHF Base 3 h
    Int. UHF Rover 5.4 h
    Network Rover 5.5 h
    External Power 12 ~ 36 VDC
    Auto switch between battery and external power
    Communication
    1x UHF antenna port
    1x 7-pin LEMO USB port, for power supply, data download
    1x 7-pin serial port, for power supply, correction output
    Integrated GSM/GPRS 3G modem
    Multimode Bluetooth completely compatible with Android, Windows Mobile, and Win 7/8/10 OS
    WiFi, 802.11 b/g/n, supporting AP, 150 m distance, 108 Mbps
    Button 1x power button, 1x FN button
    LED Indicator 1x power, 1x SVs, 1x corrections, 1x WiFi, 1x data logging
    Radio Modem Internal Rx/Tx: 403 - 473 MHz; External Tx DL5: 1 W - 20 W adjustable
    Data Formats
    RTCM 2.1, RTCM 2.2, RTCM 2.3, RTCM 2.x, RTCM 3.x, RTCM 3.2, CMR, CMR+, SCMRX
    NMEA0183 output
    RINEX and HCN outputs for GNSS raw data
    NTRIP
    Data Storage
    32G
    HCN, RINEX 2.11/3.02
    GPS device mounts as a USB external hard drive

    *Reception is dependent upon firmware versions and licensed features

    Champion, Champion PRO are trademarks of Champion Instruments, LLC.
