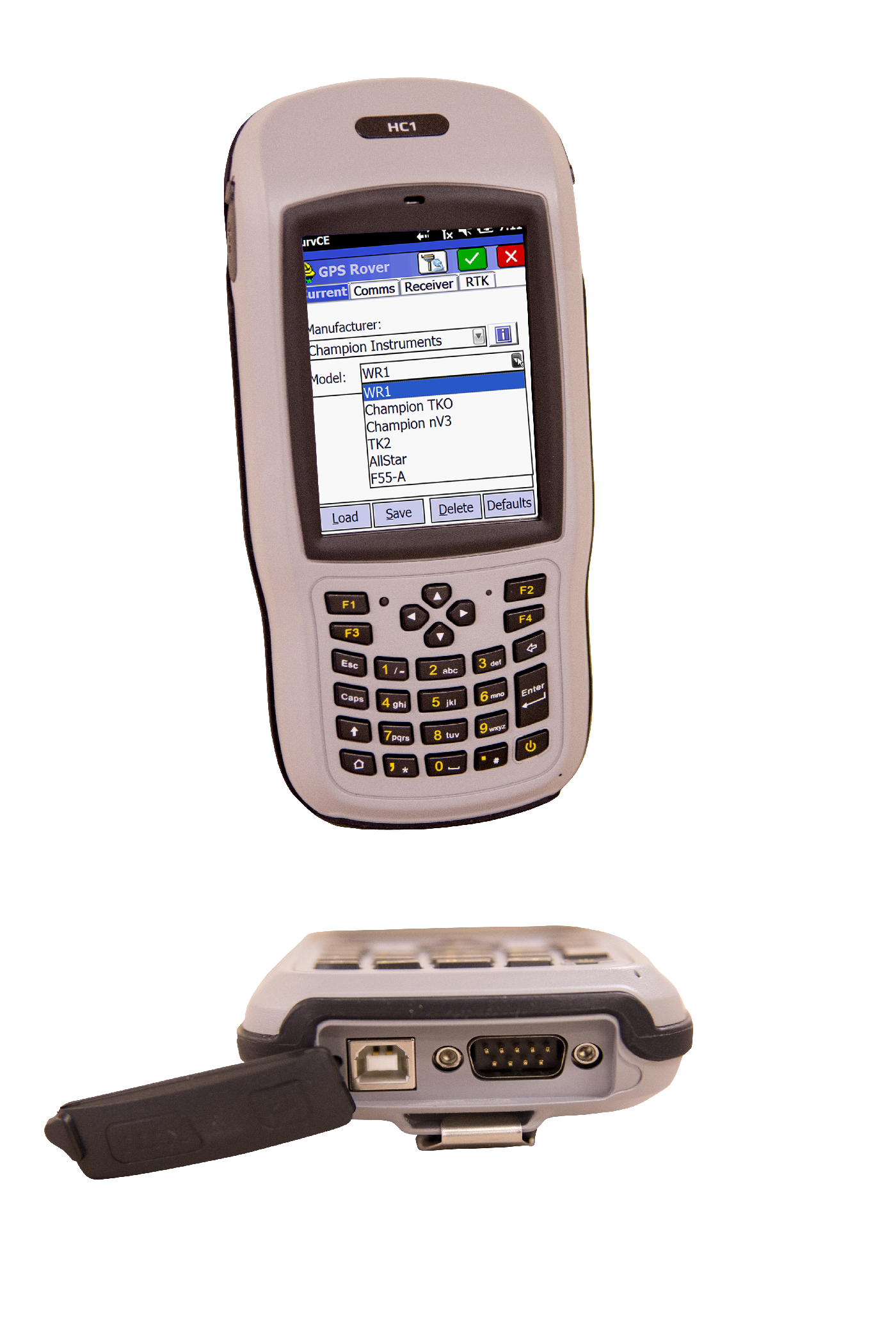

HC1 DATA COLLECTOR

Our fourth Champion Data Collector, the HC1 is ready for use; application possibilities in power companies, agriculture, and geological industries, forestry, field service, GIS/Surveying, and more!


The HC1 works with Total Stations, GPS Receivers and Robotic Surveying Equipment Using Long Range Bluetooth or external radios connected through the 9 pin serial port. Built in mapping grade GPS gives GIS applications the 1.5 meter accuracy they desire at a fraction of the competitor's price and an integrated 5 Mega Pixel camera allows for asset verification. The internal GSM modem offers seamless wireless internet access where GSM service works well and the built-in Wi-Fi allows connections through hotspots where GSM service is unavailable.

FEATURES

• 3G GSM Modem with WiFi, Bluetooth and 900 ft long range Bluetooth
• Internal mapping grade GPS
• IP54 - Limited protection against dust and water
• 6,500mA Battery - Lasts All Day!
• 9 pin serial port
• 3.7” sunlight readable screen
• 1 year warranty
• 1.2 lbs with battery
• 806MHz, 512MB RAM, 1GB storage expandable to 33GB
• 5 Megapixel Camera
• 7.87” x 3.78” x 1.26”

STANDARD ACCESSORIES

• Belt clip with stylus
• USB connectivity cable
• DC charger
• Serial Cable
• Clear screen protector

OPTIONAL ACCESSORIES

• Champion AS1-S GNSS antenna
• External GNSS Antenna cable
• Champion 2 meter GNSS pole
• Champion HW-02 mounting bracket and claw
• Bipod



HC1 SPECIFICATIONS

Overview
Processor 806 MHz
Storage 1GB (expandable to 33GB using a MicroSD card)
RAM 512MB
Operating System Windows Mobile 6.1
Multi-Language
Keypad 27 numeric + programmable keys
Mic
Speaker
Display 3.7" sunlight readable with integrated touchscreen
Display Resolution 480 x 640
Camera 5 megapixel
Dimension 7.87"(W) x 3.78"(H) x 1.26"(D)
Weight 1.2 lbs with battery
GNSS Performance
GPS L1
Channels 50
NMEA-0183
External Antenna
Accuracy (Internal Accord Accuracy)
Autonomous 2.5 m
SBAS 2 m
DGPS 1.5 m
Time to First Fix
Hot Start 1 s
Warm Start 29 s
Cold Start 29 s
Re-Acquisition 1 s
Communications & Data Storage
Long Range Bluetooth
GSM/3G 3G
WiFi
USB Port Type B USB
Serial Port DB9 (RS232)
Voice
Power
DC Input DC 5 V, 1 A
Detachable Li-ion Battery 6500 mA, 3.7 V
Environment
Operating Temperature -20 °C ~ +60 °C (-4 °F ~ 140 °F)
Storage Temperature -30 °C ~ +70 °C (-22 °F ~ +158 °F)
Limited Dust and Water IP54
Drop 1.2 m

Champion, Champion HC1 are trademarks of Champion Instruments, LLC.
